Arctic White

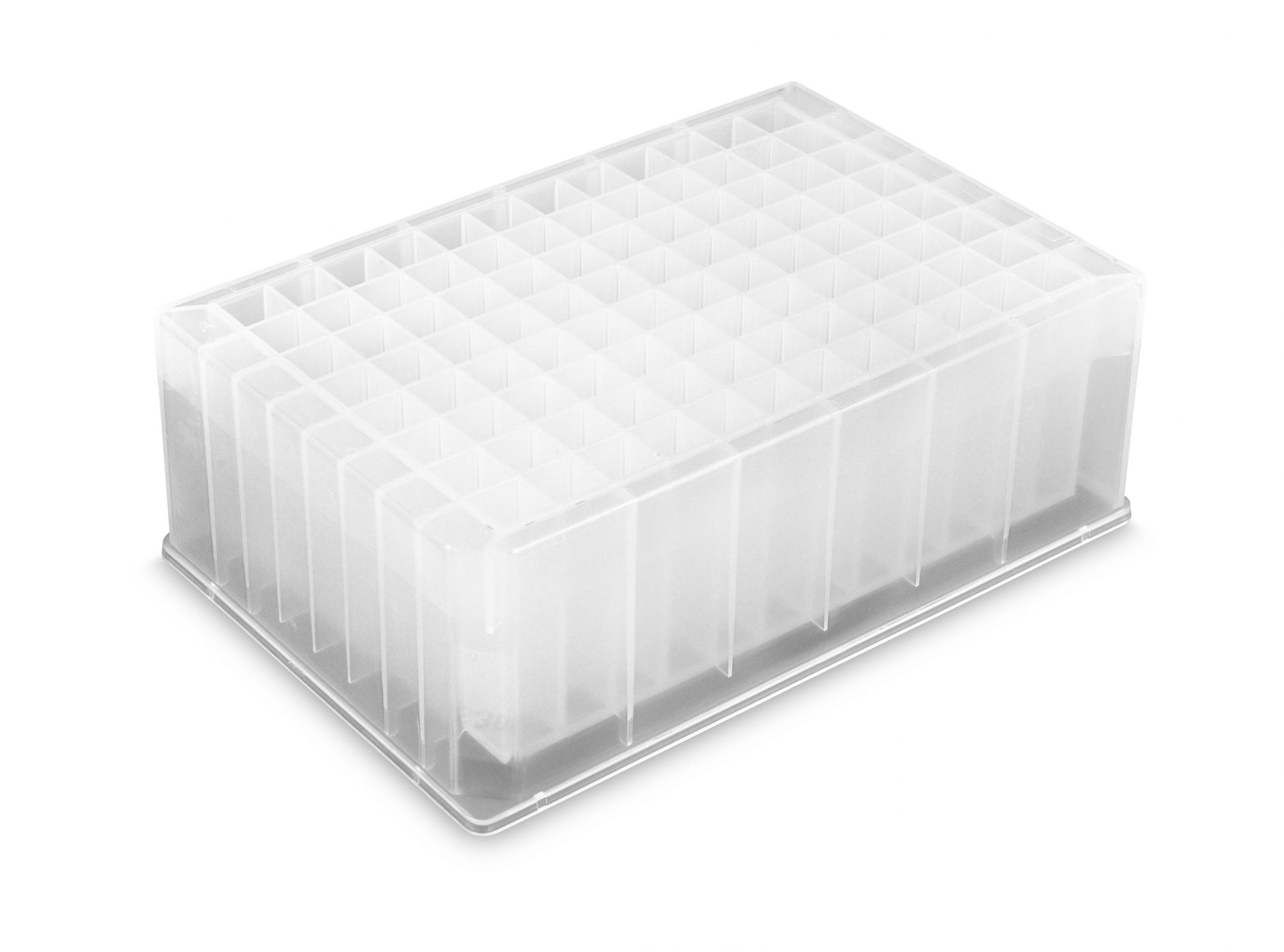

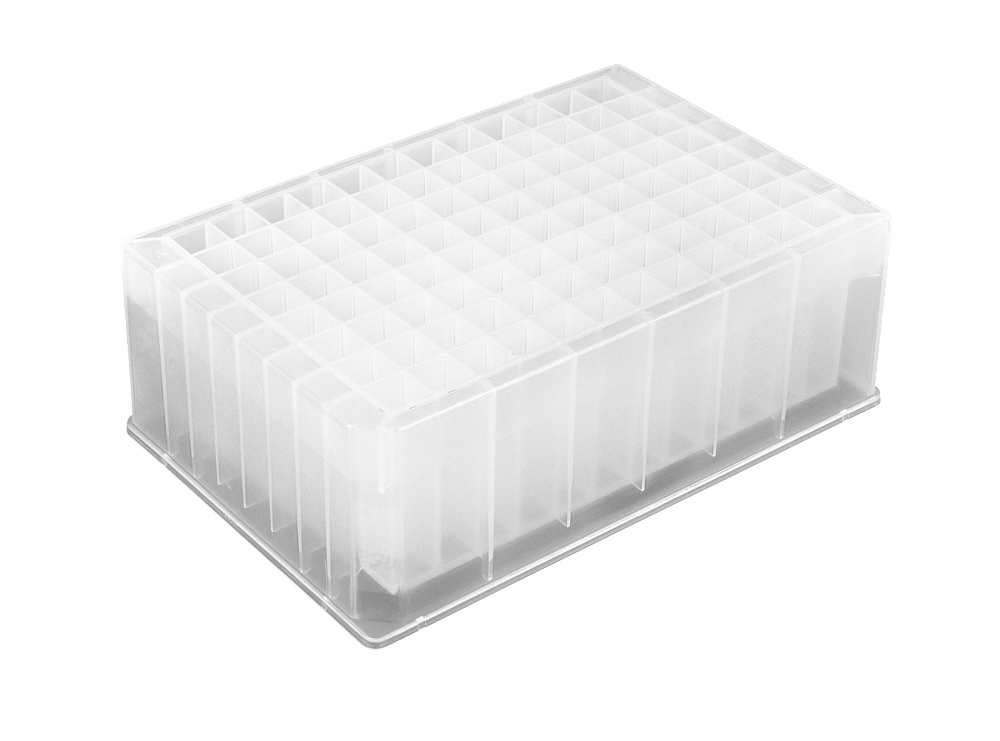

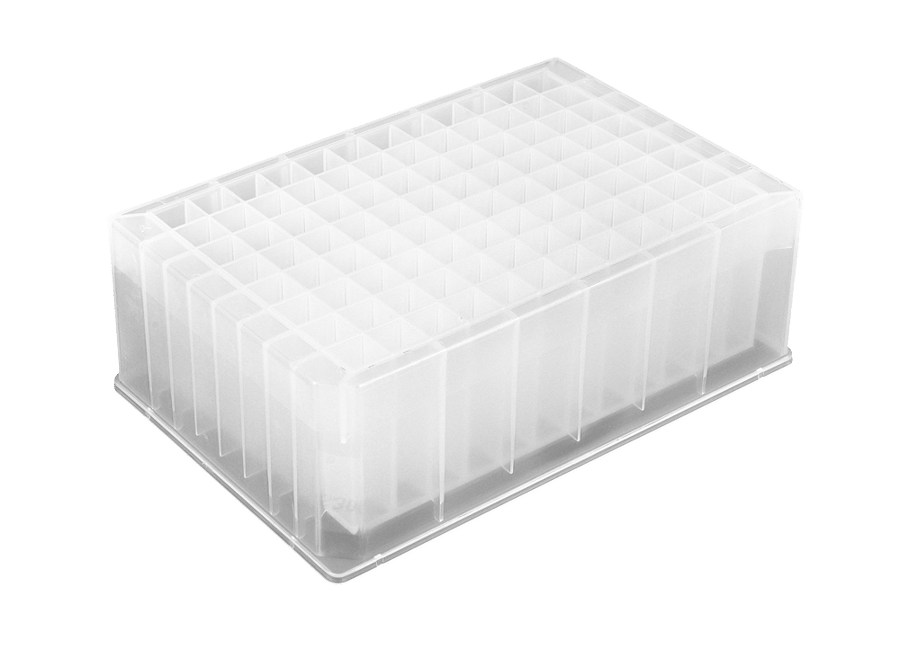

96 Square Deep Well, 2 mL, Polypropylene, Pyramid Bottom
AWLS-S30009$229.00
In stock. Usually ships in 1 to 2 business days.
Packaging
Case Quantity: 25This 96-well deep well microplate is used for automated liquid handling, nucleic acid purification, and sample storage.
Specifications
- SKU
- AWLS-S30009
- Packaging
- Case Quantity: 25
- Well Count
- 96
- Plate Type
- Deep Well Plate
- Well Shape
- Square
- Bottom Shape
- Pyramid Bottom
- Sterile
- Non-Sterile
- Material
- Polypropylene (PP), chemical resistant
- Volume
- 2 mL per well
- Temperature range
- -86 °C to ambient
Dimensions
- Plate Height
- 44.04 mm
- Well Depth
- 39.22 mm
- Footprint
- ANSI/SLAS (SBS)
- Length x Width
- 127.76 x 85.47 mm
- Well Pitch
- 9.0 mm
- A1 Offset
- 14.38 mm from left, 11.24 mm from top
- Well Opening
- 8.23 mm square
Replaces these parts from other brands
Already using one of these? This plate can take its place. We checked each one against the maker's published specs. Highlighted cells differ from this plate.
Eppendorf 0030501306
| Spec | Arctic White | Eppendorf |
|---|---|---|
| Wells | 96 | 96 |
| Well shape | Square | Square |
| Bottom | Pyramid | Pyramid |
| Well volume (total) | 2ml | Not listed |
| Plate height | 44.04 mm | Not listed |
| Well depth | 39.22 mm | Not listed |
| Footprint | ANSI/SLAS (SBS) | ANSI/SLAS (SBS) |
| Other differences | Wells hold 2.4 mL total (ours 2.3 mL total) | |
Revvity 6008880
| Spec | Arctic White | Revvity |
|---|---|---|
| Wells | 96 | 96 |
| Well shape | Square | Square |
| Bottom | Pyramid | Pyramid |
| Well volume (total) | 2ml | Not listed |
| Plate height | 44.04 mm | 44 mm (differs from this plate) |
| Well depth | 39.22 mm | 41.5 mm (differs from this plate) |
| Footprint | ANSI/SLAS (SBS) | Not listed |
| Other differences | Wells hold 2.5 mL total (ours 2.3 mL total) | |
All trademarks belong to their respective owners. Arctic White is not affiliated with the manufacturers listed.
Available glass coated
AWLS-S30209
96 Square Well, 2 mL/Well, Polypropylene, Glass Coated, 25/Case
Same plate with a glass contact surface in every well, for hydrophobic compounds.
