Arctic White

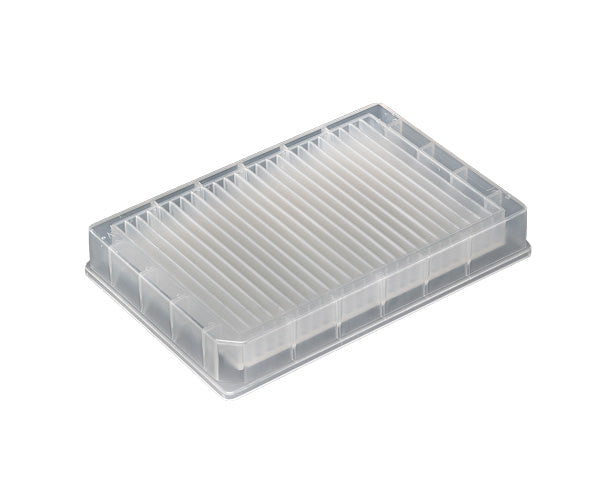

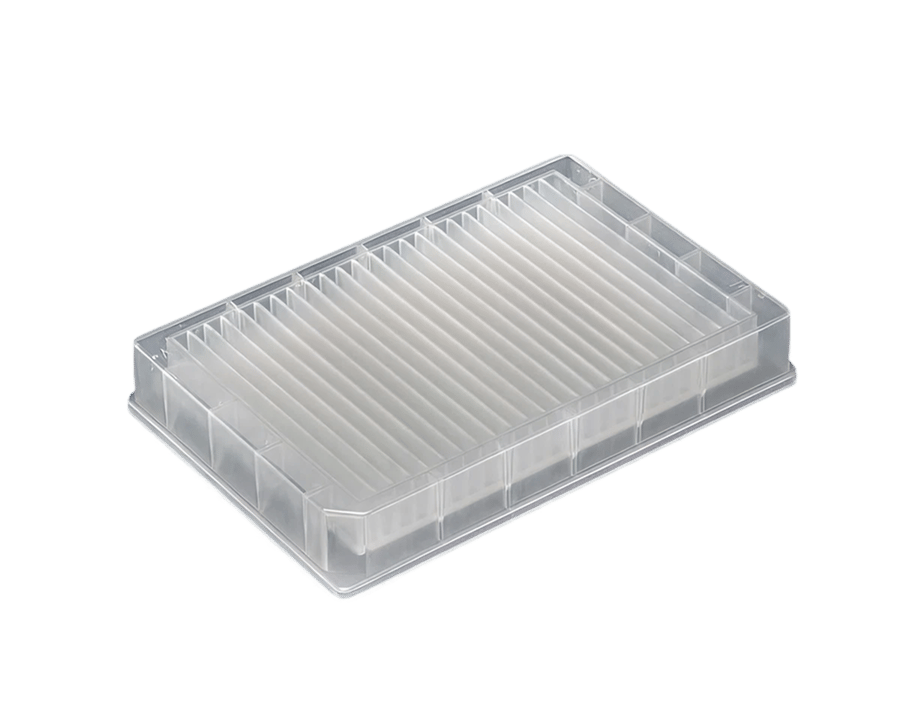

Reservoir 24 Partitioned Low Profile Pyramid PP
AWLS-S30035Pricing on request
In stock. Usually ships in 1 to 2 business days.
Packaging
Case Quantity: 25A polypropylene reagent reservoir with 24 partitioned compartments and a pyramid bottom, for automated liquid handlers and multichannel pipetting.
Specifications
- SKU
- AWLS-S30035
- Packaging
- Case Quantity: 25
- Well Count
- 24
- Material
- Polypropylene (PP)
- Format
- Low profile
- Bottom Shape
- Pyramid
Dimensions
- Plate Height
- 19.05 mm
- Well Depth
- 12.98 mm
- Footprint
- ANSI/SLAS (SBS)
- Length x Width
- 127.76 x 85.47 mm
- Well Pitch
- 4.5 mm between columns
- A1 Offset
- 12.08 mm from left, 42.37 mm from top
Replaces these parts from other brands
Already using one of these? This plate can take its place. We checked each one against the maker's published specs.
Integra 6361
| Spec | Arctic White | Integra |
|---|---|---|
| Wells | 24 | Not listed |
| Plate height | 19.05 mm | Not listed |
| Well depth | 12.98 mm | Not listed |
| Footprint | ANSI/SLAS (SBS) | Not listed |
| Other differences | 12 partitioned columns (ours has 24 compartments); standard height (ours is low profile) | |
Azenta 4ti-0131
| Spec | Arctic White | Azenta |
|---|---|---|
| Wells | 24 | Not listed |
| Plate height | 19.05 mm | Not listed |
| Well depth | 12.98 mm | Not listed |
| Footprint | ANSI/SLAS (SBS) | Not listed |
| Other differences | 12 channels (ours has 24 compartments) | |
All trademarks belong to their respective owners. Arctic White is not affiliated with the manufacturers listed.
This item is quoted. Add it to your cart and submit a quote request for pricing and lead time, or contact us.
Not sure which to choose? Open the Reservoir Guide.Glass coated plates
Want this in glass coated?
A glass contact surface in every well, for hydrophobic compounds in sample storage and compound management.
Frequently bought together
ArctiSeal™ Sealing Mats for 24-well plates
Re-pierceable silicone / PTFE sealing mats sized for this plate format.
