Single Cavity Reservoirs
Also available glass coatedAWLS-S32014 · 96 Well Reservoir, w/ Glass Coating, 25/Case
Close match
Close match
Not sure which to choose? Open the Reservoir Guide.Also available at Fisher ScientificCat. No. NC9719947View on fishersci.com
Arctic White

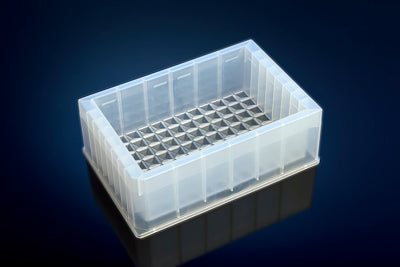

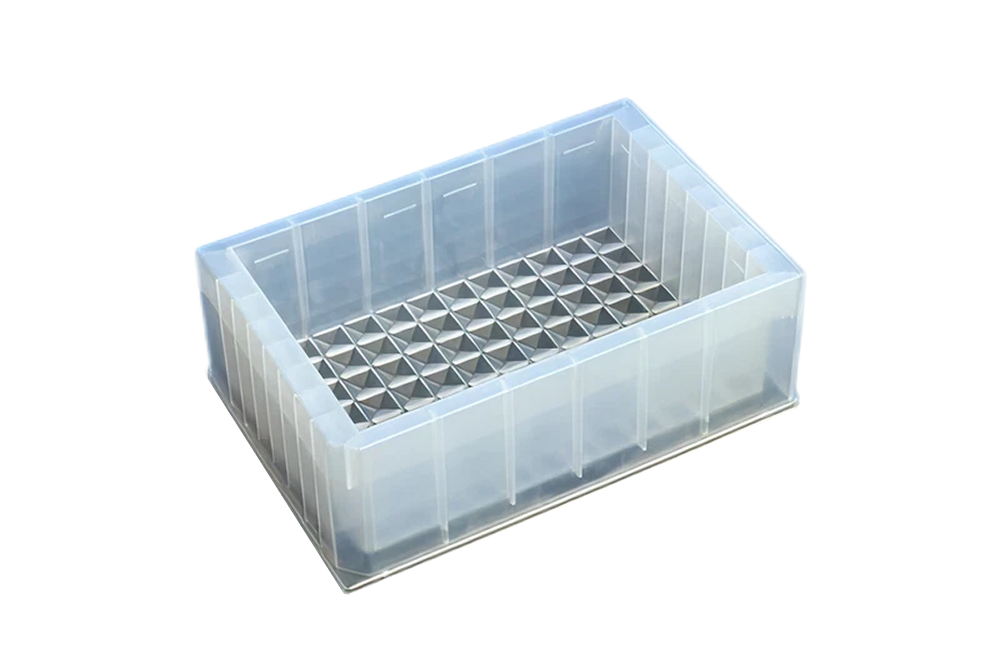

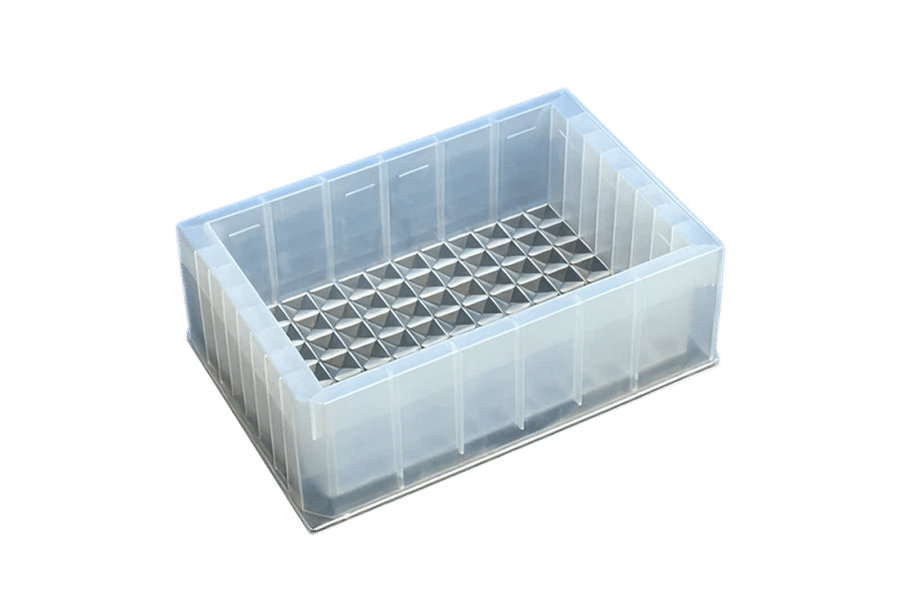

96 Well Reservoir, Pyramid Bottom, Clear, Non-Sterilized
AWLS-S30014$287.00
Packaging
Case Quantity: 25This 96-well reagent reservoir has a pyramid bottom. It suits automated liquid handlers and multichannel pipetting.
Specifications
- SKU
- AWLS-S30014
- Packaging
- Case Quantity: 25
- Well Count
- 96
- Well Shape
- Pyramid
- Volume
- 287 mL
- Material
- Polypropylene (PP)
Dimensions
- Plate Height
- 44.04 mm
- Well Depth
- 39.22 mm
- Footprint
- ANSI/SLAS (SBS)
- Length x Width
- 127.76 x 85.47 mm
- Well Pitch
- 9.0 mm
- A1 Offset
- 14.38 mm from left, 11.24 mm from top
Replaces these parts from other brands
Already using one of these? This plate can take its place. We checked each one against the maker's published specs.
Integra 6351
| Spec | Arctic White | Integra |
|---|---|---|
| Wells | 96 | Not listed |
| Plate height | 44.04 mm | Not listed |
| Well depth | 39.22 mm | Not listed |
| Footprint | ANSI/SLAS (SBS) | Not listed |
| Other differences | Holds 300 mL (ours 287 mL) | |
Azenta 4ti-0133
| Spec | Arctic White | Azenta |
|---|---|---|
| Wells | 96 | Not listed |
| Plate height | 44.04 mm | Not listed |
| Well depth | 39.22 mm | Not listed |
| Footprint | ANSI/SLAS (SBS) | Not listed |
| Other differences | Open reservoir with a 12-channel base (ours has a 96-well base); holds 290 mL (ours 287 mL) | |
All trademarks belong to their respective owners. Arctic White is not affiliated with the manufacturers listed.
1
Available glass coated
AWLS-S32014
96 Well Reservoir, w/ Glass Coating, 25/Case
Same plate with a glass contact surface in every well, for hydrophobic compounds.
Frequently bought together
ArctiSeal™ Sealing Mats for 96-well plates
Re-pierceable silicone / PTFE sealing mats sized for this plate format.
