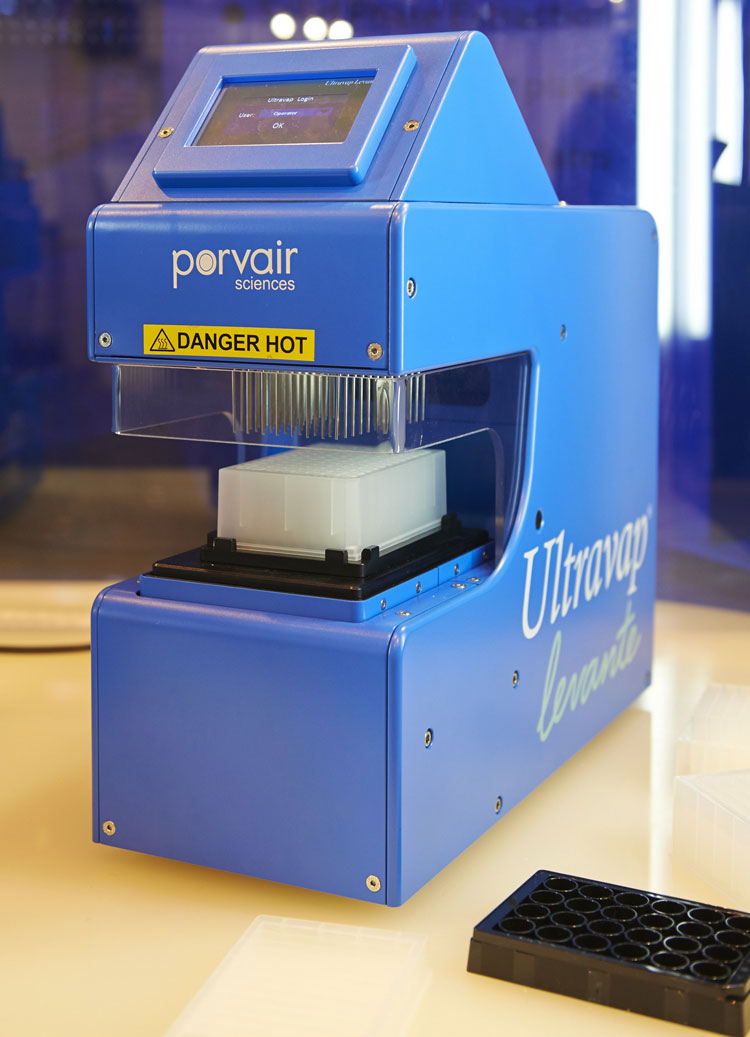

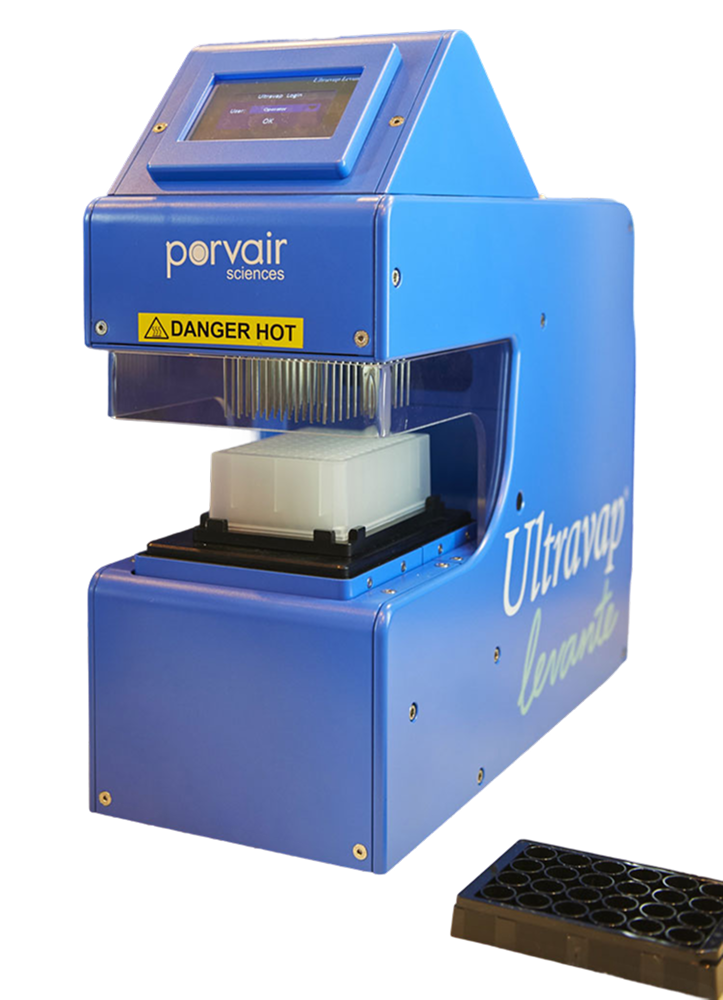

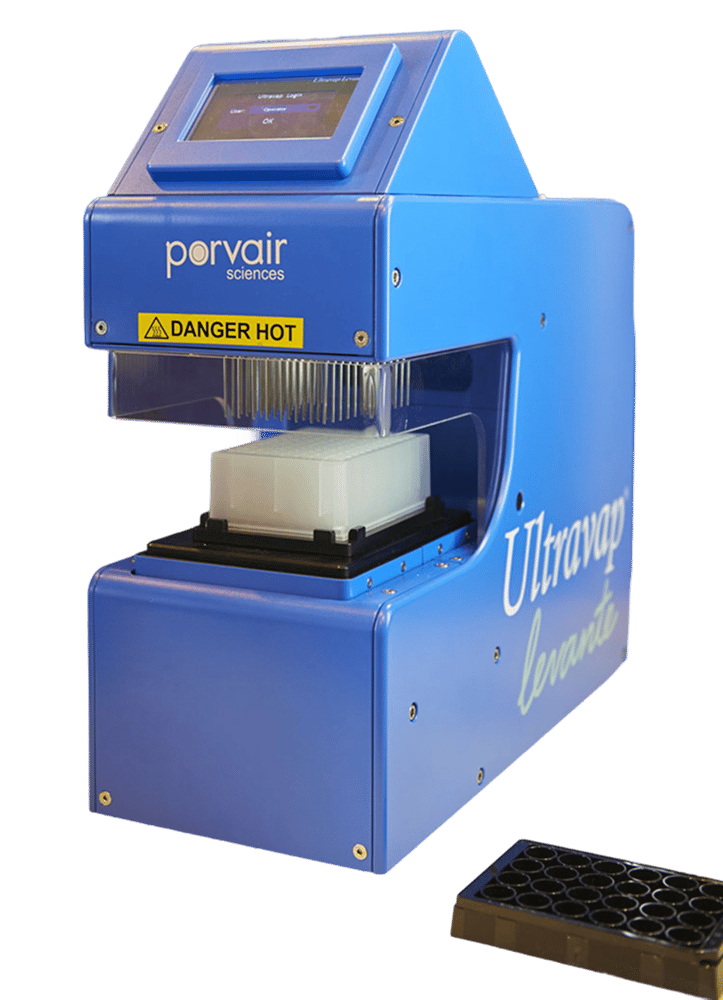

The UltraVap Levante is a nitrogen blow-down concentrator and evaporator designed for precise solvent evaporation across multiple sample formats. Real-time monitoring of gas temperature, flow rate, and stage height provides enhanced process control, while integrated fume venting and optional fan acceleration maximize evaporation efficiency. The instrument accommodates ANSI/SLAS microplates, tubes up to 80mm, 2 Dram vials, 1.5mL HPLC vials, and racked bar-coded tubes.
Gas Source: Nitrogen cylinder or in-house nitrogen/clean dry air supply
Display: Full color touch screen graphic interface
Flow Control: On-board digital flow controller with auto-ranging power supply
Programming: Multi-step ramped programming with full alphanumeric naming
Fume Venting: Integrated with optional fan unit for enhanced vapor removal
Microplate Formats: 24-well, 48-well, 96-well, and 384-well head options
Additional Head Option: 96-well spiral needle head
Compatible Formats: ANSI/SLAS microplates, tubes up to 80mm height, 2 Dram vials, 1.5mL HPLC vials, racked bar-coded tubes
