A vacuum manifold is one of the most versatile tools in modern analytical laboratories. Whether you’re performing solid phase extraction, filtering samples, or concentrating biomolecules, the right lab vacuum manifold can dramatically improve your workflow efficiency and sample quality. This comprehensive guide explores the types of vacuum manifolds available, their applications, and how to select the perfect system for your laboratory needs.

What is a Vacuum Manifold and Why Laboratories Use Them

Vacuum manifolds are modular sample preparation devices that use negative pressure to accelerate liquid transfer through packed columns, filter membranes, or separation media. Unlike gravity-driven or centrifugation-based methods, vacuum-assisted processing offers precise control, faster throughput, and superior reproducibility—critical factors for laboratories handling multiple samples simultaneously.

The fundamental principle is simple but powerful: vacuum pressure creates a differential across your separation medium, pulling liquid through while retaining solid particles, bound analytes, or precipitated proteins on the stationary phase. This approach is particularly valuable in high-throughput environments where processing 96 or more samples per batch is routine.

Labs choose vacuum manifolds for several compelling reasons:

• Increased throughput: Process multiple samples in parallel, reducing analysis time from hours to minutes.
• Improved consistency: Vacuum pressure eliminates variables inherent in gravity-fed systems, yielding more reproducible results.
• Better analyte recovery: Precise control over extraction conditions minimizes sample loss during separation steps.
• Reduced hands-on time: Automated or semi-automated operation frees analysts for other critical tasks.
• Compatibility with standard formats: Most modern lab vacuum manifolds work seamlessly with SBS-format microplates and 96-well configurations, integrating with robotic liquid handlers and automation platforms.

Types of Vacuum Manifolds

Vacuum manifolds come in several configurations, each designed for specific applications and sample formats. Understanding the distinctions helps you select the right tool for your unique laboratory environment.

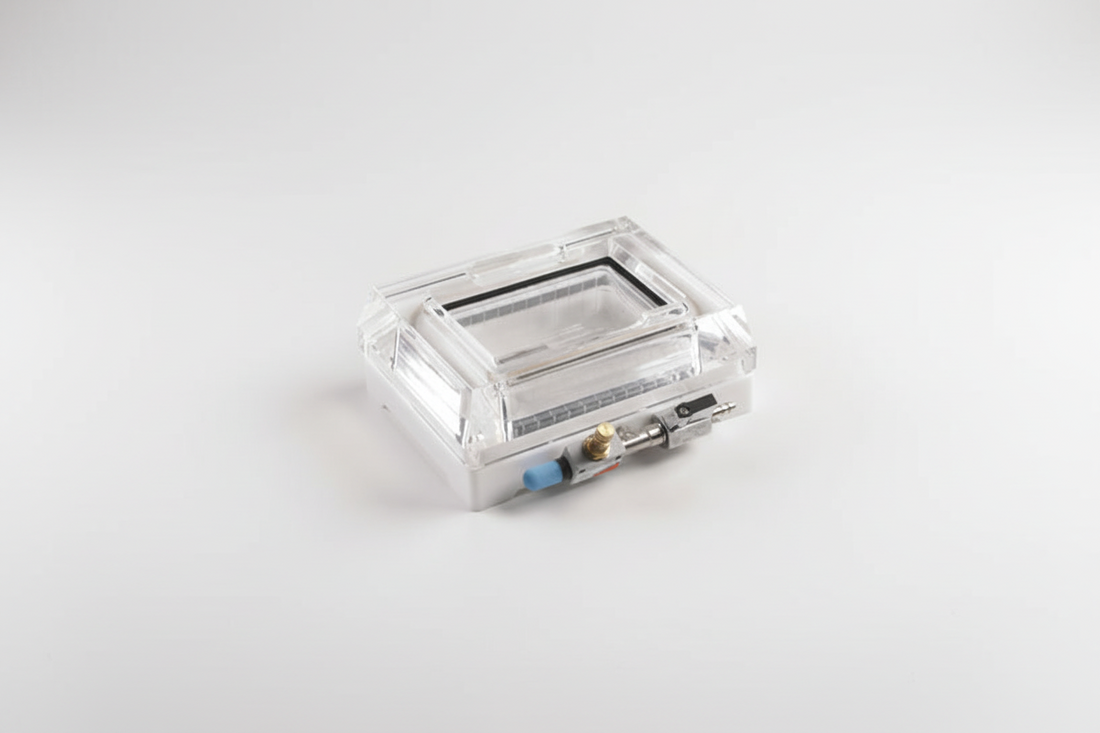

Microplate Vacuum Manifolds (96-Well and Multi-Well Formats)

Microplate vacuum manifolds are among the most popular designs in modern laboratories. These systems accommodate standard microplates and filter plates with 8, 12, 24, 48, or 96-well formats. The 96-well configuration dominates high-throughput screening, diagnostics, and multi-sample extraction workflows.

A typical microplate vacuum manifold features:

• A sealed chamber or gasket system that creates an airtight connection with your separation plate
• Vacuum distribution channels that draw liquid downward through all wells simultaneously or in programmable cycles
• Modular design allowing easy switching between different plate formats and well densities
• Integration with collection plate receivers positioned directly beneath the separation medium

These lab vacuum manifolds are ideal for protein quantification assays, immunoassays, and multi-residue pesticide extraction from food matrices.

SPE (Solid Phase Extraction) Cartridge Manifolds

SPE vacuum manifold systems represent another critical category, designed specifically for individual extraction cartridges rather than microplate formats. These manifolds accommodate 1 mL, 3 mL, 6 mL, or larger cartridge volumes in parallel, with 12, 24, or 48 individual positions.

SPE vacuum manifolds offer particular advantages:

• Higher loading volumes for concentrated sample preparation
• Flexible sorbent chemistry matching your target analytes (reversed-phase, normal-phase, ion-exchange, mixed-mode)
• Superior control over flow rates through larger bed masses
• Enhanced visibility of sample progression through transparent manifold bodies

These systems excel in pharmaceutical bioanalysis, environmental monitoring, and clinical diagnostics where individual cartridge flexibility is paramount.

Filtration and Clarification Manifolds

A filtration manifold simplifies the parallel processing of samples through membrane filters or depth filters without the sorbent chemistry of traditional SPE. These devices rapidly clarify biological samples, remove particulates before analysis, or sterile-filter small batches of prepared samples.

Filtration manifold applications include:

• Clarifying serum, plasma, or cell culture supernatants
• Removing cellular debris from lysate samples
• Concentrating and washing proteins
• Preparing samples for liquid chromatography or mass spectrometry

Key Applications for Vacuum Manifolds

The versatility of vacuum manifolds across diverse analytical workflows underscores their importance in modern laboratories.

Solid Phase Extraction (SPE)

SPE remains the cornerstone application for vacuum manifolds. The extraction process—equilibration, loading, washing, and elution—benefits enormously from vacuum-assisted flow control. A lab vacuum manifold ensures consistent contact time between sample and sorbent, optimizes analyte retention and recovery, and minimizes cross-contamination between samples through independent positions and sealing.

Filtration and Sample Clarification

Whether your goal is removing particulates, cells, or protein aggregates, vacuum-assisted filtration manifold systems dramatically accelerate clarification. Pharmaceutical and biotechnology laboratories routinely clarify serum samples, cell culture media, or enzymatic reaction mixtures using lab vacuum manifolds equipped with appropriate membrane filters.

Protein Precipitation and Concentration

Many bioanalytical workflows begin with protein precipitation using organic solvents or specialized reagents. A vacuum manifold rapidly recovers supernatants containing small-molecule analytes while retaining precipitated proteins.

How to Choose the Right Vacuum Manifold

Selecting an appropriate vacuum manifold requires evaluating several critical factors aligned with your specific laboratory applications and constraints.

Format Compatibility and Sample Scale

First, determine whether your workflow demands microplate vacuum manifold systems for parallel 96-well or similar high-throughput processing, or whether SPE vacuum manifold designs with individual cartridge positions better suit your needs. Ensure any manifold you select accommodates standard 96-well plates or other microplate formats central to your operations.

Throughput Requirements

How many samples must your laboratory process daily or per experiment? A filtration manifold with 12 positions handles moderate sample loads, while a 96-well microplate format processes four times that volume simultaneously. Match manifold capacity to your typical batch size, accounting for growth in sample volume over the coming years.

Vacuum Source and Integration

Will your lab vacuum manifold connect to a centralized house vacuum, a dedicated pump, or an integrated vacuum regulator? Consider whether your existing infrastructure can accommodate additional draw and how the manifold integrates with automated or robotic sample preparation platforms used in your laboratory.

Material Compatibility

Verify that manifold construction materials—typically polypropylene, polyetheretherketone (PEEK), or stainless steel—resist your solvents, extraction buffers, and elution phases. Ensure gaskets and sealing components are compatible with your planned applications to prevent cross-contamination and sample loss.

Vacuum Manifold Maintenance and Best Practices

Proper maintenance extends your vacuum manifold lifespan, preserves performance, and ensures reproducible results across all experiments.

Regular cleaning: After each use, rinse the manifold chamber and tubing with appropriate solvents to remove residual sorbent, precipitated proteins, or membrane particles.

Gasket and seal inspection: Examine gaskets and seals regularly for degradation, cracks, or residue buildup. Replace worn components promptly to maintain vacuum integrity.

Vacuum pump maintenance: Whether using house vacuum or a dedicated pump, ensure proper filtration of drawn air and liquid to prevent pump contamination.

Pressure regulation: Calibrate vacuum regulators periodically. Most applications perform optimally between 5 and 15 inches of mercury (12 to 38 kPa).

Preventive care: Use sealing films to cover collection plates during storage, preventing dust contamination and evaporation.

Pairing Manifolds with the Right Consumables

Optimal results come from carefully matching your vacuum manifold with compatible filter plates, collection plates, and sealing systems.

Filter plates and separation media: Select microplate filter plates with appropriate membrane chemistries and porosities for your application.

Collection plates: Pair your separation plate with matching collection plates constructed from materials compatible with your intended analytes and solvents.

Sealing solutions: Use appropriate sealing films to prevent evaporation or contamination during incubation, storage, or transport steps between manifold operations.

Conclusion

A well-selected vacuum manifold transforms sample preparation workflows, enabling faster processing, improved consistency, and higher sample throughput. By understanding manifold types, matching them to your key applications, and selecting compatible consumables, you maximize extraction efficiency, minimize sample loss, and maintain reproducibility across your analytical campaigns. Arctic White’s comprehensive selection of vacuum manifolds, complementary microplates, and sealing materials ensures you have everything needed to optimize your sample preparation infrastructure.

For additional guidance on microplate selection and integration, consult our Microplate Selection Guide, which covers format options, material compatibility, and best practices for integrating microplates across your laboratory workflows.
